Install - SOC display

Installations and wiring instructions for the 6DS0003K SOC display.

back to topGood technique

Unfortunately, we do not have the resources to teach all of our clients proper assembly procedures, which are essential for a succesful project. What we can do is to pass along this info to you:

back to topMechanical

The SOC display is a PCB assembly; it is not enclosed.
Item Value
Dimensions (no connector) 1.75" wide x 1.15" tall x 0.575" deep (44.4 x 29.2 x 14.6 mm)
Mounting holes 2 each, placed on a 1.55" wide x 0.95" tall rectangle, x 0.078" dia (39.4 x 24.1 X 2.0 mm)
Opening required in front panel 0.5" wide x 1.0" tall (12.7 x 25.4 mm)

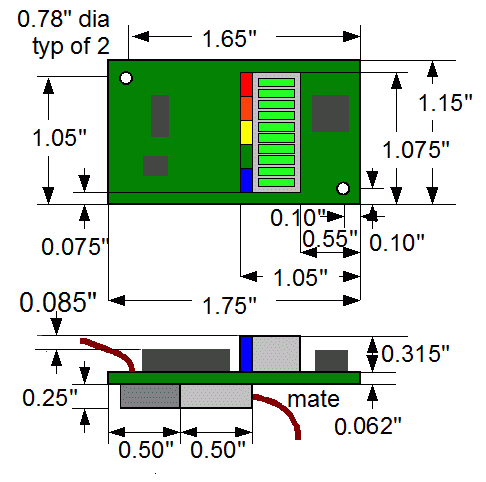

Board-level CAN display mechanical drawing Suggested overlay
Board-level CAN display (click to enlarge), left. Suggested overlay, right.

The SOC display can be installed behind a bezel of your choice. It is installed with 4 each 4-40 or 3 mm screws.

back to topElectrical
Connector anchor

The SOC display is connected to the CAN bus and a 12 V power source through a 4-pin connector.
On PCB Mate Pin-out
4-pin Molex C-Grid CL male header

Molex C-Grid CL, 0.1" pitch
4-pin male header
4-pin Molex C-Grid CL female housing

Female housing, locking: 50-57-9404 DK:WM2902-ND
Crimp socket, 22-24 AWG gold: 16-02-0103 DK:WM2512-ND
4-pin Molex C-Grid CL female housing pin-out

Female connector, wire entry side
# Name Function Connect to
1 Gnd Common Aux 12 V negative (chassis)
2 CANL CAN Low CAN bus
3 CANH CAN High CAN bus
4 V+ Power in Switched aux 12 V positive*

*) For example, in EVs, connect to the V+ output of the BMS controller (pin 2 of the white Control connector), which is powered whether the ignition is on or the vehicle is plugged into the wall.

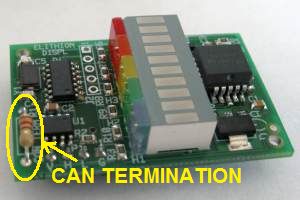

CAN termination anchor

The Display includes a CAN termination resistor. It is the only leaded component on the board.

If it is not required in your application, you may snip it off.

CAN terminaltion resistor
