Balance Booster™ mechanical specs

Mechanical Specifications for the 1BB0000B Balance Booster

The Balance Booster is a PCB assembly; it is not enclosed.

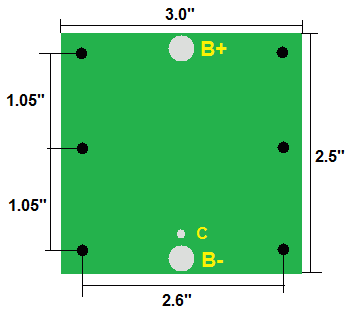

Balance Booster mechanical size
Item Label Nom
Dimensions W x H x Th 3 x 2.5 x 0.17"
76.2 x 63,5 x 4.3 mm
Holes 0.125"
3.17 mm
