Balance Booster™ electrical specs

Electrical Specifications for the 1BB0000B Balance Booster

Absolute Maximum Ratings anchor

Operation beyond these values will damage the unit
Symbol Item Conditions Min   Max Units
VSUPPL-max Supply voltage Off -0.3   100 Vdc
On -0.3   4.5 Vdc
VCTRL-IN-max Control voltage   -10   10 V
TAMB Ambient temperature Operating -40   +80 °C

Recommended operating conditions anchor
Symbol Item Conditions Min Nom Max Units
Voper Operating voltage Balancing 3.4 - 4.2 V
TAMB Ambient temperature Operating -20   +60 °C
DC Electrical specs anchor

Unless otherwise noted: 25 °C; 3.6 Vdc
Symbol Item Conditions Min Nom Max Units
Voper Operating voltage - 2.5 - 4.5 V
Ibal Balance current 3.6 V 1.9 A
4.2 V 2.0
3.6~4.2 V, -10~+60°C 1.75 2.3
Ioff Off current - - - 10 uA

Balance Booster graph

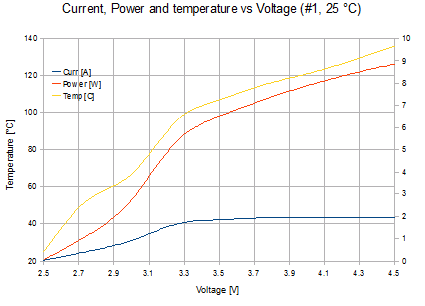

Current, Power and Temperature vs. Cell voltage.
Balance Booster plot

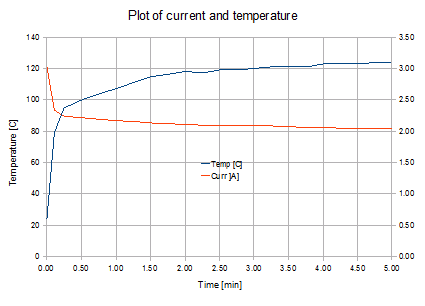

Plot of Current and Temperature.
