Lithiumate™ Manual

index reference description_specs mechanical_specs 1PR0xxxX_mech_specs

Prismatic cell boards mechanical specs

Dimensions, 3D models, drawings

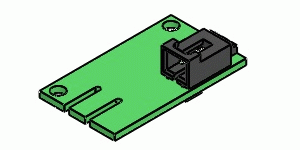

cell board isometric view

Common specifications:
Item Nom
PCB Width 0.8" / 20.3 mm
PCB Length 1.4" / 35.56 mm
Overall height, mid-bank board 0.3" / 7.5 mm
Overall height, end board w/ right angle connector 0.47" / 12 mm
Terminal material Plated copper
Wire gauge 18 AWG

Specifications particular to each model:
Part Number Item 3D
model
Mechanical
drawing
Weight Max cell
terminal
spacing
Bolt
size
Ring
terminal
ID
Ring
terminal
OD

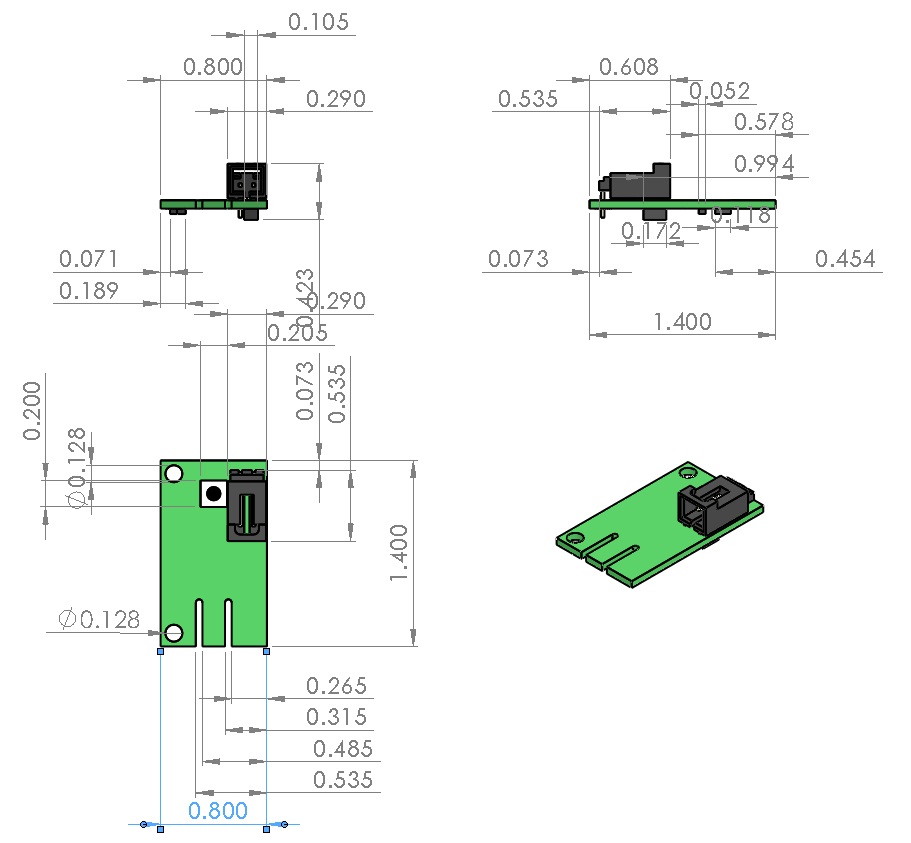

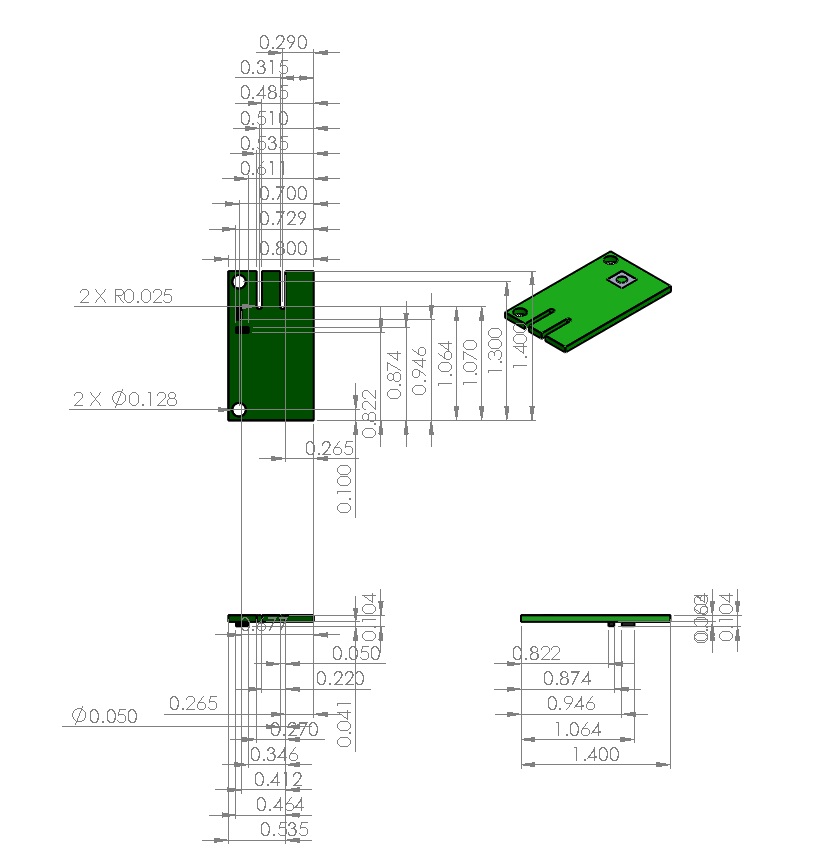

1PR0000M Cell board, prismatic, generic, mid-bank STEP
eDrawing
JPG 2.3 g n.a. n.a. n.a. n.a.
1PR0000P Cell board, prismatic, generic, positive end, r.a connector STEP
eDrawing
JPG 2.5 g
1PR0000N Cell board, prismatic, generic, negative end, r.a connector STEP
eDrawing
JPG 2.5 g
1PR0060M Cell board, prismatic, 60 mm spacing, M4, mid-bank STEP
eDrawing
9.8 g 2.5"
64 mm
#8, 0.157"
M4
0.173"
4.4 mm
0.32"
8.1 mm
1PR0060P Cell board, prismatic, 60 mm spacing, M4, positive end, r.a connector STEP
eDrawing
9.2 g
1PR0060N Cell board, prismatic, 60 mm spacing, M4, negative end, r.a connector STEP
eDrawing
8.3 g
1PR0064M Cell board, prismatic, 64 mm spacing, M6, mid-bank STEP
eDrawing
9.9 g 2.5"
64 mm
1/4"
M6
0.25"
6.3 mm
0.48"
12 mm
1PR0064P Cell board, prismatic, 64 mm spacing, M6, positive end, r.a connector STEP
eDrawing
9.2 g
1PR0064N Cell board, prismatic, 64 mm spacing, M6, negative end, r.a connector STEP
eDrawing
8,2 g
1PR0106M Cell board, prismatic, 106 mm spacing, M8, mid-bank STEP
eDrawing
11.4 g 4.17"
106 mm
5/16"
M8
0.312"
8 mm
0.59"
15 mm
1PR0106P Cell board, prismatic, 106 mm spacing, M8, positive end, r.a connector STEP
eDrawing
9.8 g
1PR0106N Cell board, prismatic, 106 mm spacing, M8, negative end, r.a connector STEP
eDrawing
10.3 g
1PR0210M Cell board, prismatic, 210 mm spacing, M14/M16, mid-bank 26.4 g 8.27"
210 mm
5/8"
M14/M16
0.656"
16.66 mm
0.125"
31.75 mm
1PR0210P Cell board, prismatic, 210 mm spacing, M14/M16, positive end, r.a connector 24.9 g
1PR0210N Cell board, prismatic, 210 mm spacing, M14/M16, negative end, r.a connector 24.8 g
1PR0212M Cell board, prismatic, 210 mm spacing, M12, mid-bank 16.4 g 8.27"
210 mm
1/2"
M12
0.515"
13.1 mm
0.850"
21.6 mm
1PR0212P Cell board, prismatic, 210 mm spacing, M12, positive end, r.a connector 12.7 g
1PR0212N Cell board, prismatic, 210 mm spacing, M12, negative end, r.a connector 13.8 g
1PR0240M Cell board, prismatic, 240 mm spacing, M14/M16, mid-bank g 9.45"
240 mm
5/8"
M14/M16
0.656"
16.66 mm
0.125"
31.75 mm
1PR0240P Cell board, prismatic, 240 mm spacing, M14/M16, positive end, r.a connector g
1PR0240N Cell board, prismatic, 240 mm spacing, M14/M16, negative end, r.a connector g
