Elithion Lithiumate manual - Controllers w/HV Front End mechanical specs

Lithiumate™ Manual

index reference mechanical_specs 2CN0xxxH_mech_specs

Controllers w/HV Front End mechanical specs

Mechanical Specifications for the 2CN0xxxH enclosed controller with a High Voltage Front End

Dimensions	173 x 95 x 50.5	mm
Dimensions	6.81 x 3.74 x 1.99	"
Weight	1.5	lb
Mass	680	g
Material	Die cast aluminum alloy

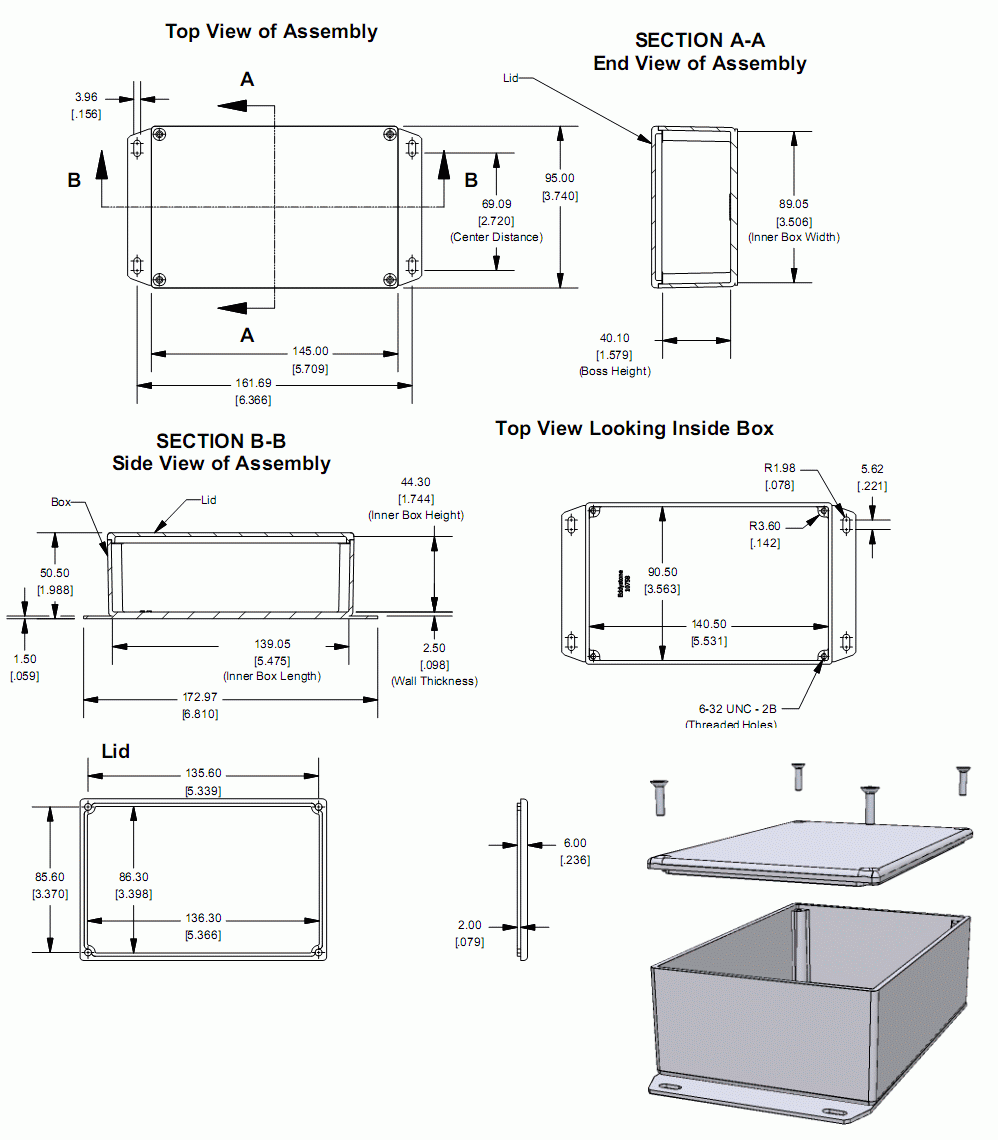

Dimensions of encased BMS controller
