Controller CAN specs

Specifications for the CAN Bus messages used by the BMS master

These are the CAN messages that are sent or may be sent by the BMS, and the ones that the BMS may listens to.

The BMS master operates on these fixed parameters:

• CAN communication standard
• 125, 250, 500 kHz (default) or 1MHz {Rev 1.05+}
• Standard addressing (CAN 2.0 A) (11 bits, not extended), except J1939 messages
• Selectable bus termination: included or not

This BMS master places the following messages on the CAN bus:

• A subset of the Standard Traction Pack Messages
• A control message for a Brusa charger
• Messages for the Elithion display
• Data dump of all cell data (optional)

This BMS master places on the CAN bus the applicable subset of the Standard Traction Pack Messages.

Notes:

• Period: 1 s
• Multi-byte values are big-endian: the MSB (Most Significant Byte) is in the lower numbered data byte (the left most byte in the following tables)
• The ID of the 1st message is programmable; the other messages use IDs following the 1st ID

ID		Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
Progr.	Default
ID0+0	0x620	8	"Elithion" (0)
ID0+1	0x621	8	"2CN " + Rev level (0)
ID0+2	0x622	7(20)	State (1)	Timer (2)		Flags (3)	Fault code (4)	Level faults (5)	Warnings (21)
ID0+3	0x623	6	Pack voltage (6)		Min Vtg (7)	Min Vtg # (8)	Max vtg (7)	Max Vtg # (8)
ID0+4	0x624	6	Current (9)		Charge limit (10)		Discharge limit (10)
ID0+5	0x625	8	Batt. energy in (11)				Batt. energy out (11)
ID0+6	0x626	7(15)	SOC (12)	DOD (13)		Capacity (14)		0x00	SOH (15)
ID0+7	0x627	6	Temperature (16)	-	Min tmp (17)	Min tmp # (8)	Max tmp (17)	Max tmp # (8)
ID0+8	0x628	6	Pack resistance (19)		Min res (20)	Min res# (8)	Max res (20)	Max res# (8)




0. ASCII, starting from rev 0.97. Rev level: F1.04 = Harware rev F, Software rev 1.04
1. State of system
   • Bit 4: Relay fault
     1 = while attempting to turn on the contactors, the tests detected a fault, and the contactors were turned off
   • Bit 3: Contactor K3 is on
     1 = K3 LED is on and K3 output is grounded in COILS connector on BMS master; K3 output of HVFE is grounded
   • Bit 2: Contactor K2 is on
     1 = K2 LED is on and K3 output is grounded in COILS connector on BMS master; K2 output of HVFE is grounded
   • Bit 1: Contactor K1 is on
     1 = K1 LED is on and K3 output is grounded in COILS connector on BMS master; K1 output of HVFE is grounded
   • Bit 0: Fault state
     0 = OK; 1 = BMS master is in the Fault State
     The BMS master enters into the Fault State after a fault has lasted for some time (the "Fault Delay Time"), except for "Tripped Interlock", which causes an immediate fault.
     The fault must be cleared manually (by cycling the power off and on, or through the GUI)
     If configured for normal polarity, 1 = FLT LED is on and FLT output is grounded;
     if configured for reversed polarity, 1 = FLT LED is off and FLT output is open.
     The FLT LED and output are not affected if they are configured to work as a Warning output instead of a Fault output.
2. Power up time [s]; after 65535 s, it overflows back to 0
3. Byte of flags:
   • Bit 7: The Fan is on
     The FAN LED is on and the FAN output is grounded
   • Bit 6: The LLIM is set: cannot discharge
     By default: 1 = the LLIM LED is on and the LLIM output is grounded
     If so configured: 1 = the LLIM LED is off and the LLIM output is open
   • Bit 5: The HLIM is set: cannot charge
     By default: 1 = the HLIM LED is on and the HLIM output is grounded
     If so configured: 1 = the HLIM LED is off and the HLIM output is open
   • Bit 4: There is a CAN contactor request
     CAN ID, byte, bit and polarity are configurable)
   • Bit 3: There is a hard wire contactor request
     Configurable whether active low / open or active high
   • Bit 2: The interlock is tripped
     Configurable whether tripped = input is open or tripped = input is closed
   • Bit 1: There is power from the load
     Vl power input of the BMS master
   • Bit 0: There is power from the source
     Vs power input of the BMS master
4. Fault code, stored:
   1. Driving off while plugged in
   2. Interlock is tripped
   3. Communication fault with a bank or cell
   4. Charge overcurrent
   5. Discharge overcurrent
   6. Over-temperature
   7. Under voltage
   8. Over voltage
   9. No battery voltage
   10. High voltage B- leak to chassis
   11. High voltage B+ leak to chassis
   12. Relay K1 is shorted
   13. Contactor K2 is shorted
   14. Contactor K3 is shorted
   15. Open K1 or K3, or shorted K2
   16. Open K2
   17. Excessive precharge time
   18. EEPROM stack overflow
   19. Loss of CAN from HVFE {Rev 1.27}
5. Level fault flags:
   • Bit 7: Over voltage
   • Bit 6: Under voltage
   • Bit 5: Over-temperature
   • Bit 4: Discharge overcurrent
   • Bit 3: Charge overcurrent
   • Bit 2: Communication fault with a bank or cell
   • Bit 1: Interlock is tripped
   • Bit 0: Driving off while plugged in
6. Total voltage of pack [V], unsigned, 0 to 65 kV, as the sum of all cell voltages; {in rev 1.05 and above, if available, measured directly by the HVFE}
7. Voltages [100 mV] of least charged cell and most charged cell, 0 to 25.5 V {30 s average voltage in revs 1.04 and below}
8. ID of the cell that has the lowest / highest voltage / temperature / resistance. 0 to 255
9. Pack current [A], signed*, positive out of pack, -32kA to + 32kA, averaged over 1 s
10. Maximum current acceptable (charge) or available (discharge), unsigned, 0 to + 65kA [A]
11. Total energy in or out of battery, since manufacture. Unsigned, overflows back to 0 [kWH]
12. State Of Charge [%], unsigned, 0 to 100. When deeply discharged, its value does not go below 0
13. Depth Of Discharge [AH], unsigned, 0 to 65 kAH. When deeply discharged, its value may exceed the actual capacity's value
14. Actual capacity of pack [AH], unsigned, 0 to 65 kAH
15. State Of Health [%], unsigned, 0 to 100. 100 % = all OK {Starting from rev 0.97; in older revs only 6 bytes are sent in this message}
16. Average pack temperature [°C], signed*, -127 °C to +127 °C
17. Temperatures [°C] of coldest and hottest sensors, signed*, -127 °C to +127 °C
18. -
19. Resistance [100 micro-ohm] of entire pack, unsigned, 0 to 6553.5 milliohm
20. Resistances [100 micro-ohm] of lowest and highest resistance cells, unsigned, 0 to 25.5 milliohm
21. Warning flags: {starting from rev 0.97; in rev < 0.97 the number of bytes was 6}
    • Bit 7 (0x80): isolation fault {Rev 2.02 and up}
    • Bit 6 (0x40): low SOH
    • Bit 5 (0x20): hot temperature
    • Bit 4 (0x10): cold temperature
    • Bit 3 (0x08): discharge overcurrent
    • Bit 2 (0x04): charge overcurrent
    • Bit 1 (0x02): high voltage
    • Bit 0 (0x01): low voltage

*) Signed = 2's complement: 0xFF = -1, 0x00 = 0, 0x01 = 1

Custom messages use an 11-bit ID, 0 to 8 data bytes, 10 ms to 25 s rate, and the data may include any combination of any parameter.

See the custom message set-up instructions for more information.

This BMS master places on the CAN bus a message for Elithion hardware:

• 6DS0003K display
• 2HR0xxx Remote Hight Voltage Front End

Notes:

• Period: 2 messages every 100 ms, separated by 10 ms
• Length: 3 bytes

ID	Item	Byte 0: Address	Byte 1: Mask	Byte 2: Data
				Bit 7	Bit 6	Bit 5	Bit 4	Bit 3	Bit 2	Bit 1	Bit 0
0x680	Display LEDs	0x1E	0xFF	-	-	0 = Fault	0 = Current limited	0 = Powered by load	-	0 = Contactors on	0 = Powered by source
	Display SOC bar	0x25	0xFF	0x00 to 0x64 - 0 to 100%
	HVFE	0x48	0xFF	-	1 = Drive Precharge switch	1 = Drive SW- switch	1 = Drive SW+ switch	1 = Drive relay K3	1 = Drive relay K2	1 = Drive relay K1	1 = Fault

The BMS can be programmed to dump the data from all the cells onto the CAN bus.

Tha data consists of a set of messages, once a second.

• The first message gives all the readings of a particular cell, and rotates through each cell sued, one cell per second
• The other messages give the voltage readings of all the cells actually used
  • The number of messages ranges from 1 (if 1 to 8 cells are used) all the way to 32 (if 249 to 255 cells are used)

The format of the data dump is:.

• Rate: a burst every 1 second, with individual messages generated every 10 ms
• Length: 8 data bytes
• Units:
  • Voltages are in 10 mV, offset by 2 V (So, 0x00 = 2 V, 0x10 = 2.16 V...)
  • Temperatures are in °C, offset by 0x80 (So, 0x80 = 0 °C, 0x81 = 1 °C, 0x7F = -1 °C)
  • Resistances are in 100 µΩ (So, 0x01 = 100 µΩ)
  • Status; each bit is a flag:
    0. 1 = the voltage reading from this cell board is OK
    1. 1 = the temperature reading from this cell board is OK
    2. 1 = the resistance reading from this cell board is OK
    3. 1 = the cell board reports its load is on
    4. 1 = the cell board reports a voltage sensor fault
    5. 1 = the cell board reports a temperature sensor fault
    6. 1 = the cell board reports a resistance calculation fault
    7. 1 = the cell board reports a load fault

ID	Data 0	Data 1	Data 2	Data 3	Data 4	Data 5	Data 6	Data 7	Notes
ID+0	Cell number	Voltage	Temperature, all the time	Resistance	Status	5	5	5	Up to Rev 0.96
				Temperature when balancing load is off	Resistance	5	5	5	Rev 0.97 to 1.06
						Status	0	0	Rev 1.07+
ID+1	Cell 0 vtg	Cell 1 vtg	Cell 2 vtg	Cell 3 vtg	Cell 4 vtg	Cell 5 vtg	Cell 6 vtg	Cell 7 vtg
ID+2	Cell 8 vtg	Cell 9 vtg	Cell 10 vtg	Cell 11 vtg	Cell 12 vtg	Cell 13 vtg	Cell 14 vtg	Cell 15 vtg
ID+3	Cell 16 vtg	Cell 17 vtg	Cell 18 vtg	Cell 19 vtg	Cell 20 vtg	Cell 21 vtg	Cell 22 vtg	Cell 23 vtg
ID+4	Cell 24 vtg	Cell 25 vtg	Cell 26 vtg	Cell 27 vtg	Cell 28 vtg	Cell 29 vtg	Cell 30 vtg	Cell 31 vtg
ID+5	Cell 32 vtg	Cell 33 vtg	Cell 34 vtg	Cell 35 vtg	Cell 36 vtg	Cell 37 vtg	Cell 38 vtg	Cell 39 vtg
ID+6	Cell 40 vtg	Cell 41 vtg	Cell 42 vtg	Cell 43 vtg	Cell 44 vtg	Cell 45 vtg	Cell 46 vtg	Cell 47 vtg
ID+7	Cell 48 vtg	Cell 49 vtg	Cell 50 vtg	Cell 51 vtg	Cell 52 vtg	Cell 53 vtg	Cell 54 vtg	Cell 55 vtg
ID+8	Cell 56 vtg	Cell 57 vtg	Cell 58 vtg	Cell 59 vtg	Cell 60 vtg	Cell 61 vtg	Cell 62 vtg	Cell 63 vtg
ID+9	Cell 64 vtg	Cell 65 vtg	Cell 66 vtg	Cell 67 vtg	Cell 68 vtg	Cell 69 vtg	Cell 70 vtg	Cell 71 vtg
ID+10	Cell 72 vtg	Cell 73 vtg	Cell 74 vtg	Cell 75 vtg	Cell 76 vtg	Cell 77 vtg	Cell 78 vtg	Cell 79 vtg
ID+11	Cell 80 vtg	Cell 81 vtg	Cell 82 vtg	Cell 83 vtg	Cell 84 vtg	Cell 85 vtg	Cell 86 vtg	Cell 87 vtg
ID+12	Cell 88 vtg	Cell 89 vtg	Cell 90 vtg	Cell 91 vtg	Cell 92 vtg	Cell 93 vtg	Cell 94 vtg	Cell 95 vtg
ID+13	Cell 96 vtg	Cell 97 vtg	Cell 98 vtg	Cell 99 vtg	Cell 100 vtg	Cell 101 vtg	Cell 102 vtg	Cell 103 vtg
ID+14	Cell 104 vtg	Cell 105 vtg	Cell 106 vtg	Cell 107 vtg	Cell 108 vtg	Cell 109 vtg	Cell 110 vtg	Cell 111 vtg
ID+15	Cell 112 vtg	Cell 113 vtg	Cell 114 vtg	Cell 115 vtg	Cell 116 vtg	Cell 117 vtg	Cell 118 vtg	Cell 119 vtg
ID+16	Cell 120 vtg	Cell 121 vtg	Cell 122 vtg	Cell 123 vtg	Cell 124 vtg	Cell 125 vtg	Cell 126 vtg	Cell 127 vtg
ID+17	Cell 128 vtg	Cell 129 vtg	Cell 130 vtg	Cell 131 vtg	Cell 132 vtg	Cell 133 vtg	Cell 134 vtg	Cell 135 vtg
ID+18	Cell 136 vtg	Cell 137 vtg	Cell 138 vtg	Cell 139 vtg	Cell 140 vtg	Cell 141 vtg	Cell 142 vtg	Cell 143 vtg
ID+19	Cell 144 vtg	Cell 145 vtg	Cell 146 vtg	Cell 147 vtg	Cell 148 vtg	Cell 149 vtg	Cell 150 vtg	Cell 151 vtg
ID+20	Cell 152 vtg	Cell 153 vtg	Cell 154 vtg	Cell 155 vtg	Cell 156 vtg	Cell 157 vtg	Cell 158 vtg	Cell 159 vtg
ID+21	Cell 160 vtg	Cell 161 vtg	Cell 162 vtg	Cell 163 vtg	Cell 164 vtg	Cell 165 vtg	Cell 166 vtg	Cell 167 vtg
ID+22	Cell 168 vtg	Cell 169 vtg	Cell 170 vtg	Cell 171 vtg	Cell 172 vtg	Cell 173 vtg	Cell 174 vtg	Cell 175 vtg
ID+23	Cell 176 vtg	Cell 177 vtg	Cell 178 vtg	Cell 179 vtg	Cell 180 vtg	Cell 181 vtg	Cell 182 vtg	Cell 183 vtg
ID+24	Cell 184 vtg	Cell 185 vtg	Cell 186 vtg	Cell 187 vtg	Cell 188 vtg	Cell 189 vtg	Cell 190 vtg	Cell 191 vtg
ID+25	Cell 192 vtg	Cell 193 vtg	Cell 194 vtg	Cell 195 vtg	Cell 196 vtg	Cell 197 vtg	Cell 198 vtg	Cell 199 vtg
ID+26	Cell 200 vtg	Cell 201 vtg	Cell 202 vtg	Cell 203 vtg	Cell 204 vtg	Cell 205 vtg	Cell 206 vtg	Cell 207 vtg
ID+27	Cell 208 vtg	Cell 209 vtg	Cell 210 vtg	Cell 211 vtg	Cell 212 vtg	Cell 213 vtg	Cell 214 vtg	Cell 215 vtg
ID+28	Cell 216 vtg	Cell 217 vtg	Cell 218 vtg	Cell 219 vtg	Cell 220 vtg	Cell 221 vtg	Cell 222 vtg	Cell 223 vtg
ID+29	Cell 224 vtg	Cell 225 vtg	Cell 226 vtg	Cell 227 vtg	Cell 228 vtg	Cell 229 vtg	Cell 230 vtg	Cell 231 vtg
ID+30	Cell 232 vtg	Cell 233 vtg	Cell 234 vtg	Cell 235 vtg	Cell 236 vtg	Cell 237 vtg	Cell 238 vtg	Cell 239 vtg
ID+31	Cell 240 vtg	Cell 241 vtg	Cell 242 vtg	Cell 243 vtg	Cell 244 vtg	Cell 245 vtg	Cell 246 vtg	Cell 247 vtg
ID+32	Cell 248 vtg	Cell 249 vtg	Cell 250 vtg	Cell 251 vtg	Cell 252 vtg	Cell 253 vtg	Cell 254 vtg	Cell 255 vtg

In revisions 0.96 and below, the first 64 cells are shown, and the 1st message scrolls through 255 cells, regardless of the number of cells actually used, for a total of 9 messages.

This BMS master looks on the CAN bus for messages to request that the contactors be turned on.
The format is programmable.

Notes:

• Maximum period: 300 ms (after which it assumes there is no such message on the CAN bus)

Default message:

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x632	8	Requests (1)

1. 0x00 = request contactors be off; 0x01 = request contactors be on

This BMS master looks on the CAN bus for messages with the battery current from/to the load and the source.
The format is programmable.

Notes:

• Maximum period: 300 ms (after which it assumes there is no such message on the CAN bus)

Default messages:

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x611	8							Source current (1)
0x633	8	Load current (2)

1. [10 mA], + = into battery, big-endian. Preset for compatibility with Brusa NLG5 charger
2. [100 mA], + = out of battery, big-endian

This BMS master looks on the CAN bus for messages from the Elithion Remote HV front end.

Notes:

• Maximum period: 300 ms (after which it assumes there is no such message on the CAN bus)

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4
0x681	5	Load current (1)		Source current (1)		Data (2)

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6
0x681	7	Load current (1)		Source current (1)		Data (2)	Pack voltage (3)

1. [10 mA], + = into battery, big-endian
2. Bit 0: 1 = no voltage seen by the HVFE during contactor tests
3. 24 to 1250 V, [100 mV], big-endian

PID (Parameter ID) are codes that used to request data and send commands through the CAN bus.

The Lithiumate implements a set of some 1500 codes, that enable you to:

• Get the value of individual parameters
• Clear faults

1. You send a PID request to the BMS master through the CAN bus
2. The BMS master responds with the data with a different PID message

• The request ID is programmable.
• The response ID is 0x08 more than the request ID
• Data length is 8 data bytes regardless of whether sme or all bytes are actually used (unused bytes are set at 0)

Note that the default CAN request ID changed from rev 1.xx to rev 2.xx, in order to support the Torque application (you can change the ID).

This table lists all the PIDs and the PID CAN IDs.

Through PIDs, you can change the settings in EEPROM. This spreadsheet has a list of the EEPROM data.

The Lithiumate may be programmed to generate the following messages for the Morey Telematic Trax MT-30 Automotive X-Prize data acquisition system.

Please contact us for instructions on how to turn on this feature: In the classic UI (Ctrl-T in the GUI to get to it), press: H, 6, 6, 3B Tab 20 Enter

PGN	Repetition rate	Data length	Data page	PDU format	PDU specific	Default priority	Source Address	ID	Byte 0	Byte 1	Byte 2	Byte 3		Byte 4	Byte 5	Byte 6	Byte 7
65284	10 ms	8	0	255	04	6	xx	0x18FF04F4	(n.a.) 0xFFFF		(n.a.) 0xFFFF			LSB	MSB	LSB	0x00	MSB
														HV Traction Battery Voltage (1)		HV Traction Battery Current (2)
65285	10 ms	8	0	255	05	6	xx	0x18FF05F4	HV Traction Battery state of charge (3)	0x00	LSB	0x00	MSB	(n.a.) 0xFFFF		(n.a.) 0xFFFF
											HV Traction Battery temperature (max) (4)

1. 24 to 4095 [V]; unsigned; 2 bytes; Little-Endian;
2. -2047 to 0 to +2047 [A]; signed; 2 bytes, Little-Endian; 12 bits; 4 Most Significant Bits are 0, even for negative current
3. 0 to 100 [%]; unsigned; 1 byte;
4. -127 to 0 to + 127 [°C]; signed; 2 bytes, Little-Endian; 12 bits; 4 Most Significant Bits are 0, even for negative temperature. Note that without cell boards the temperature is not known, and a default temperature of 25 °C is reported

Where input values are 12-bit values from 0x000 - 0xFFF. A value of 0xFFxx⁽³⁾ can also be specified indicating that this parameter us not provided in this packet at this time. This is to allow multiple controllers to send these packets.

⁽³⁾Per SAE J1939-71 (Jan 2009) section 5.1.5 Table 1.

This file is the .dbc for the Lithiumate series of controllers.

BMS rev	Default CAN speed	Byte order	Read current from charger
2.89+	125 kbps *	Little endian	Yes

*) Both the BMS and the charger can be configured for a different speed

ID	Bytes	Rate	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x284	8	1 s	0x00	SoC [%]	0x00	0x00	CC setting [62.5 mA] LSB - MSB		CV setting [62.5 mV] LSB - MSB

ID	Bytes	Time-out	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x29F	8	2 s	0x00	0x00	Actual current [100 mA] LSB - MSB		Actual voltage [100 mV] LSB - MSB		0x00	0x00

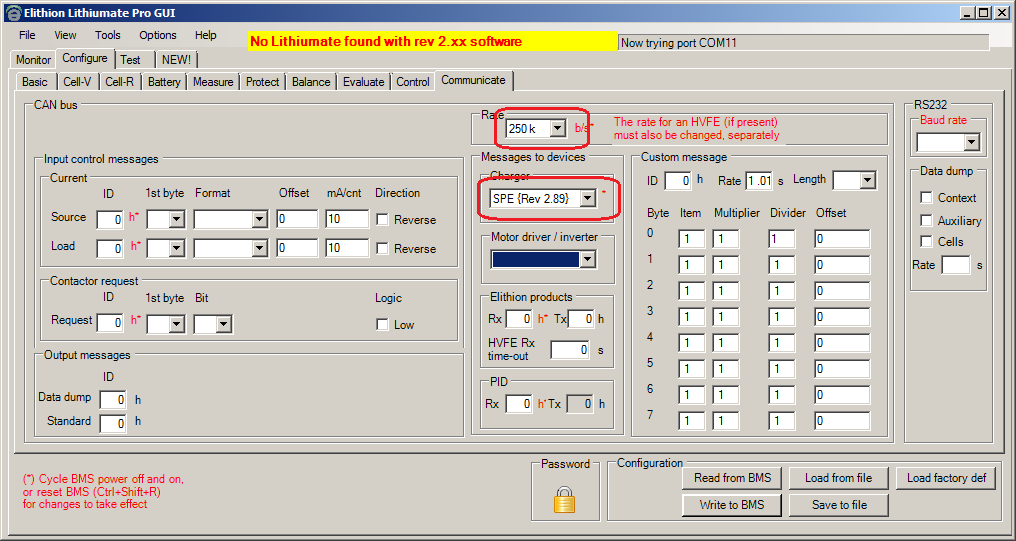

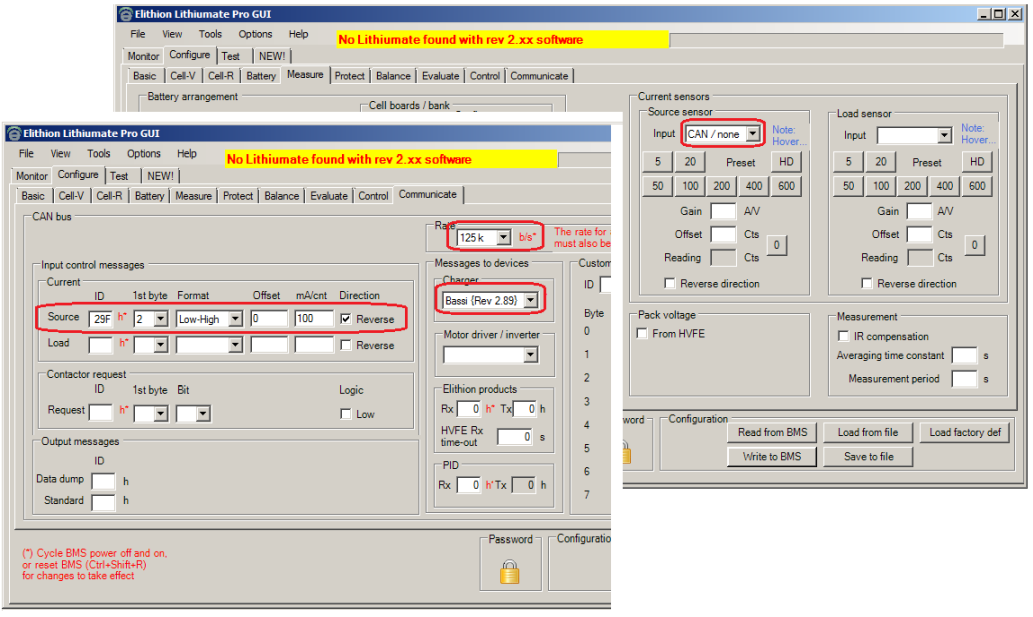

Configure the BMS to receive current from the charger: Configure tab / Communications tab / Input Control Messages box / Current box

The Lithiumate interfaces seamlessly with the Brusa NLG5 chargers.

If enabled, the BMS master places on the CAN bus a control message for a NLG5 charger.
Notes:

• Period: 100 ms
• Multi-byte values are big-endian: the MSB (Most Significant Byte) is in the lower numbered data byte (the left most byte in the following tables)

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x618	7	Flags (1)	Max IAC (2)		Max VDC (3)		Max IDC (4)

1. Control flags. Only 1 bit is used, all others are 0:
   • Bit 7: 1 to enable charging; 0 to disable charging
2. Maximum current from the AC inlet [100 mA]
   • Fixed at 50 A
3. Maximum DC output voltage [100 mV]
   • Set to the pack voltage when all the cells are full and balanced (Max cell voltage x number of cells in series)
4. Maximum DC output current [100 mA]
   • Set at the Charge Current Limit

By default, the BMS looks for battery current information at the ID that the Brusa uses:

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x611	8							Actual current (1)

1. [10 mA], + = into battery, big-endian.

The Lithiumate interfaces seamlessly with the Brusa NLG6 chargers.

If enabled the BMS master places on the CAN bus a control message for a NLG6 charger.
Notes:

• Period: 100 ms
• Multi-byte values are big-endian: the MSB (Most Significant Byte) is in the lower numbered data byte (the left most byte in the following tables)

ID	Bytes	Byte	Byte 0		Byte 1	Byte 2			Byte 3	Byte 4			Byte 5	Byte 6			Byte 7
0x711	8	Bit	7~5	4~0	7~0	7~5	4~3	2~0	7~0	7~4	3	2~0	7~0	7~5	4	3~0	7~0
		Funct	Ctrl	DC voltage limit		State	n.a.	DC Current limit		LED	n.a.	AC Current limit		n.a.	PF	AC phase
		Value	000	0x000~0x1FFF (1)		0, 1 or 6 (2)	00	0x000~0x7FF (3)		0000	0	0x540		000	0	0xFFF
			0x00~0x1F		0x00~0xFF	0x04~0x27			0x00~0xFF	0x05			0x40	0x0F			0xFF

1. DC output Constant Voltage setting [100 mV]
2. Control:
   • 0 = request "Stand-by" state, whenever HLIM is clear (charging is enabled) and the charger is in the "Stand-By" or "Sleep" state
   • 1 = request "Charge" state; whenever HLIM is clear (charging is enabled) and the charger is in the "Ready to Charge" or "Charge" state
   • 6 = request "Sleep" state; whenever HLIM is set (charging is disabled)
3. DC output Constant Current setting [100 mA] + 0x400 (i.e: 0x400 = 0 A; 0x401 = 100 mA; 0x40A = 1 A; etc.)

Notes:
The charger is awake whenever there are messages on the CAN bus. The BMS cannot stop sending messages, since they are used by other devices.

By default, the BMS looks for battery current information at the ID that the Brusa uses:

ID	Bytes	Byte 0	Byte 1	Byte 2			Byte 3	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
				7~5	4~3	2~0	7~0
0x728	8			State (1)		Actual current (2)

1. 0:Sleep; 1:Wakeup; 2:Standby; 3:Ready to Charge; 4:Charging; 5:Shutdown
2. [100 mA] + 0x400 (i.e: 0x400 = 0 A; 0x401 = 100 mA; 0x40A = 1 A; etc.), + = into battery, big-endian.

Notes:
The BMS must be configured to receive current from the NLG6 charger through message 0x728 ("Communicate" tab), in order to receive the state of the charger;
that notwithstanding, if desired, the BMS can still be configured to read the charging current from a sensor instead of from the NLG6 charger ("Measure" tab).
The BMS must be configured with the "Power-up delay" enabled ("Protect" tab).
If the charger doesn't reach the "Ready to charge" state, yet it does receive the NLG_DEM_LIM message from the BMS, the problem is with the charger set-up, not with the BMS.

If enabled, the Lithiumate interfaces seamlessly with the a Current Ways charger.

Notes:

• Multi-byte values are big-endian: the MSB (Most Significant Byte) is in the lower numbered data byte (the left most byte in the following tables)
• by default, the CAN speed for both the Lithiumate BMS and the Current Ways charger is 500 kHz

ID	Bytes	Period	Byte 0	Byte 1	Byte 2	Byte 3
0x270	4	Once	0x40	0x00	Max VDC (1)(6)
0x270	4	Once	0x41	0x00	Max IDC (2)(6)
0x270	4	Once	0x42	0x00	Max PAC (3)
0x270	4	100 ms	0x44	0x00	Flags (4)	Timeout (5)

Notes:

1. Maximum DC output voltage [V]
   • Set to the pack voltage when all the cells are full and balanced (Max cell voltage x number of cells in series)
2. Maximum DC output current [100 mA]
   • Set at the Charge Current Limit
3. Maximum power [W]
   • Fixed at 32000 W
4. Control flags. Only 1 bit is used, all others are 0:
   • Bit 0: 1 to enable charging; 0 to disable charging
5. Timeout for the next control message
   • Fixed at 2 s.
6. If either the voltage setting or the current setting is 0, the charger is disabled

The BMS master looks for battery current information on the CAN bus from the charger.

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x271	8	0xF1				Current (1)

Notes:

1. [100 mA], + = into battery, little-endian.

The Lithiumate interfaces with the EDN chargers, using the same messages as the Brusa charger. This involves a certain amount of configuration in the EDN Charger. Please contact EDN for instructions.

If enabled, the Lithiumate generates and listen to the following messages for the Elcon Charger and conforming to SAE J1939 standards.

These messages are off by default and may be turned on by programming.

Note that the ElCon CAN rate is 250 kHz, so you will have to program the BMS to also work at 250 kHz.

Message generated by Lithiumate BMS

PGN	Repetition rate	Data length	Data page	PDU format	PDU specific	Default priority	Source Address	ID (*)	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
58868	1 s	8	0	1 (0x01)	229 (0xE5)	6	244 (0xF4)	0x1806E5F4 0x1806E7F4 0x1806E8F4 0x1806E9F4	Voltage [100 mV]		Current [100 mA]		Control (1)	(n.a.) 0x00	(n.a.) 0x00	(n.a.) 0x00
									MSB	LSB	MSB	LSB

(*) Select "ElCon E4", "ElCon E7", "ElCon E8" or "ElCon E9" in the GUI.

(1) Control byte:

7	6	5	4	3	2	1	0
-	-	-	-	-	-	-	0 = On; 1 = Off

Message generated by ElCon charger

PGN	Repetition rate	Data length	Data page	PDU format	PDU specific	Default priority	Source Address	ID	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
20709	1 s	8	0	63 (0x3F)	80 (0x50)	6	229 (0xE5)	0x18FF50E5	Voltage [100 mV]		Current [100 mA]		Status (1)	(n.a.) 0x00	(n.a.) 0x00	(n.a.) 0x00
									MSB	LSB	MSB	LSB

(1) Status byte *:

7	6	5	4	3	2	1	0
-	-	-	Communication: 1 = CAN reception time-out (> 10 s since last message)	DC voltage: 1 = reverse battery polarity detected	AC voltage: 1 = not within acceptable range	Charger temperature: 1 = over temperature	Hardware: 1 = hardware failure

(*) If any status flag is set, the charger will not charge

Note: Elektro Automatik no longer manufactures these chargers, and the latest version of the Elithion software no longer supports them.

With rev 1.33 to 2.35, if enabled, the Lithiumate interfaces seamlessly with the a Elektro Automatik chargers.

ID	Bytes	Period	Byte 0	Byte 1	Byte 2
0x614	3	1 s	0x36 (1)	0x11 (1)	0x11 (1)
0x614	3	1 s	0x33 (2)	MSB (2)	00
0x615	1	1 s	0x47 (3)

Notes:

1. Turn on remote control, turn on output
2. Maximum DC output current [%]
   • 0 to 100 % (0x00 to 0x64) of nominal current setting of charger
   • BMS configuration is required
3. Request actual values

The BMS master looks for battery current information on the CAN bus from the charger.

ID	Bytes	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6
0x616	7	0x47			MSB (1)	LSB (1)

Notes:

1. Actual battery current, as percent of nominal current, + = into battery
   • MSB units [%]
   • LSB units [%/256]
   • BMS configuration is required

The Lithiumate interfaces seamlessly with a single Eltek Valere charger.

See the Eltek Valere page page for details.

BMS rev	Default CAN speed	Byte order	Read current from charger
2.89+	250 kbps *	Big endian	No (requires current sensor)

*) Both the BMS and the charger can be configured for a different speed

ID	Bytes	Rate	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x6C1	8	1 s	0x00	0x00	0x00	0x00	0x00	0x00	CCL [%] (1)	0x00

Notes:

• The BMS cannot control the CC and CV settings; those have to be configured into the charger; all the BMS can do is to reduce the current with respect to that setting
• The CC setting in the charger must have the same value as the Peak Charging Current setting in the BMS (Configure tab / Protect tab / Charging box / Peak curr. field)

1. Charge Current Limit, relative to configured Constant Current setting in the charger [%]
   e.g.: if the charger Constant Current setting is 200 A: 0x00 = no current; 0x32 = 50 % of CC setting = 100 A; 0x64 = 100 % of CC setting = 200 A
   0xFF if charging is disabled

When configured for a Zivan SG3 charger with RE software, a Lithiumate with rev 2.40 and later sends the following messages.

Notes:

• Multi-byte values are big-endian: the MSB (Most Significant Byte) is in the lower numbered data byte (the right most byte in the following tables)
• Number of data bytes: 8
• Select a CAN speed of 125 kHz (default, but both the BMS and the charger can be configured for a different speed)

Notes:

• Period: 1 s

ID	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x6C1	0x00	0x00	0x00	0x00	0x00	0x00	CCL (1)
0x776	Current limit setpoint (2)		Voltage limit setpoint (3)		0x00	0x00	Battery minimum voltage (4)

1. [0.1%] Variable value, based on CCL, 0~1000 = 0 to 100 % of Peak Charge Current setting
2. [100 mA] Fixed value, based on Peak Charge Current setting
3. [100 mV] Fixed value, based on Max Cell Voltage setting
4. [100 mV] Fixed value, based on Min Cell Voltage setting

If you wish to receive the charging current from the charger (as opposed to using a current sesnor), configure the BMS to receive it as the "source" current ("Communicate" tab of the GUI).

• ID: 0x2A4 (assuming the default node ID of 9)
• 1st byte: 2
• Format: high low (big endian)
• Offset: 0
• ma/cnt: 100
• Direction: reverse (checked)

The Lithiumate Pro, with rev 2.05 and later, interfaces seamlessly with a MES / CEBI TIM series motor inverter.

See the MES / CEBI TIM page for details.

The Lithiumate Pro, with rev 2.07 and later, interfaces seamlessly with a NetGain WarpDrive DC motor controller.

See the NetGain page for details.

The Lithiumate Pro, with rev 2.18 and later, interfaces seamlessly with a TM4 Neuro, and, through that, to a TM4 motor inverter.

See the TM4 page for details.

When configured for a SMA Sunny Island inverger, a Lithiumate with rev 2.38 and later sends the following messages.

Important note: Under various conditions, the SMA Sunny Island inverger does not obey the BMS: it continues charging despite the BMS telling it not to.
The battery MUST include a way to disable charging, directly and independently. We recommend a protector switch that controls charging and discharging independently.

Notes:

• Multi-byte values are little-endian: the MSB (Most Significant Byte) is in the higher numbered data byte (the right most byte in the following tables)
• Period: 1 s
• Number of data bytes: 8
• Select a CAN speed of 500 kHz
• Turn off all other CAN messages: the Sunny Island is unable to handle unexpected messages on the CAN bus

ID	Byte 0	Byte 1	Byte 2	Byte 3	Byte 4	Byte 5	Byte 6	Byte 7
0x351	Battery charge final voltage [100 mV]		Charge current limit [100 mA]		Disharge current limit [100 mA]		Battery discharge final voltage [100 mV]
0x355	SoC [%]	0x00	SoH [%] (5)	0x00	0x00	0x00	0x00	0x00
0x356 (6)	Battery voltage [10 mV]		Battery current [100 mA], (7)		Battery temperature [0.1 °C], signed		0x00	0x00
0x35A	Fault flags 0 (1)	Fault flags 1 (2)	Fault flags 2 (3)	0x00	Warning flags 0 (1, 4)	Warning flags 1 (2, 4)	Warning flags 2 (3, 4)	0x00

Notes:

1. Warning and flags, byte 0:
   • Bit 7:
   • Bit 6: High temperature
   • Bit 5:
   • Bit 4: Low cell voltage
   • Bit 3:
   • Bit 2: High cell voltage
   • Bit 1:
   • Bit 0: General
2. Warning and flags, byte 1:
   • Bit 7:
   • Bit 6: Over-current (either direction)
   • Bit 5:
   • Bit 4: Low temperature (warning only)
   • Bit 3:
   • Bit 2: High temperature
   • Bit 1:
   • Bit 0: Low temperature (warning only)
3. Warning and flags, byte 2:
   • Bit 7:
   • Bit 6: Ground isolation (warning only)
   • Bit 5:
   • Bit 4: (not used)
   • Bit 3:
   • Bit 2: Contactors (fault only)
   • Bit 1:
   • Bit 0: Charge over-current
4. Odd numbered bits are the opposite of the adjacent even bits: if bit 0 is set, bit 1 is clear, and viceversa.
5. Instead of SoH, the Sunny Island expects the actual relative capacity
6. Added in Rev 2.87; the Sunny Island logs these data but does not do anything with them
7. Signed. Discharging current is positive
