Lithiumate™ Manual

index reference description_specs mechanical_specs 1LC00x0X_mech_specs

Large cylindrical cell boards mechanical specs

3D models, drawings

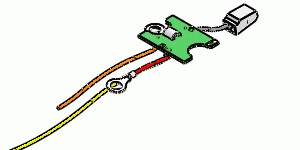

cell board isometric view
Common specifications anchor
Item Nom
PCB Width 1.2" / 30.5 mm
PCB Length 1.6" / 40.6 mm
PCB thickness 0.062" / 1.6 mm
Overall height, no connector 0.3" / 7.5 mm
Overall height, w/ right angle connector 0.47" / 12 mm
Terminal material Plated copper
Wire gauge 18 AWG
Specifications particular to each model anchor
P/N Center-to-center spacing between adjacent cells Cell length Bolt size Ring term
Min 'D' Max 'D' Min 'L' Max 'L' ID OD
1LC0040x 1.5" / 38 mm 3.14" / 80 mm 4.72" / 120 mm 6.30" / 160 mm 1/4" / M6 0.25" / 6.3 mm 0.48" / 12 mm
1LC0060x 2.36" / 60 mm 5.12" / 130 mm 9.13" / 232 mm 1/2" / M12 0.515" / 13 mm 1.25" / 31.7 mm
Drawings anchor
Part Number Item 3D model Mechanical drawing
1LC0000M Cell board, 2x large cylindrical, generic, mid-bank
1LC0000P Cell board, 2x large cylindrical, generic, positive end, r.a connector
1LC0000N Cell board, 2x large cylindrical, generic, negative end, r.a connector

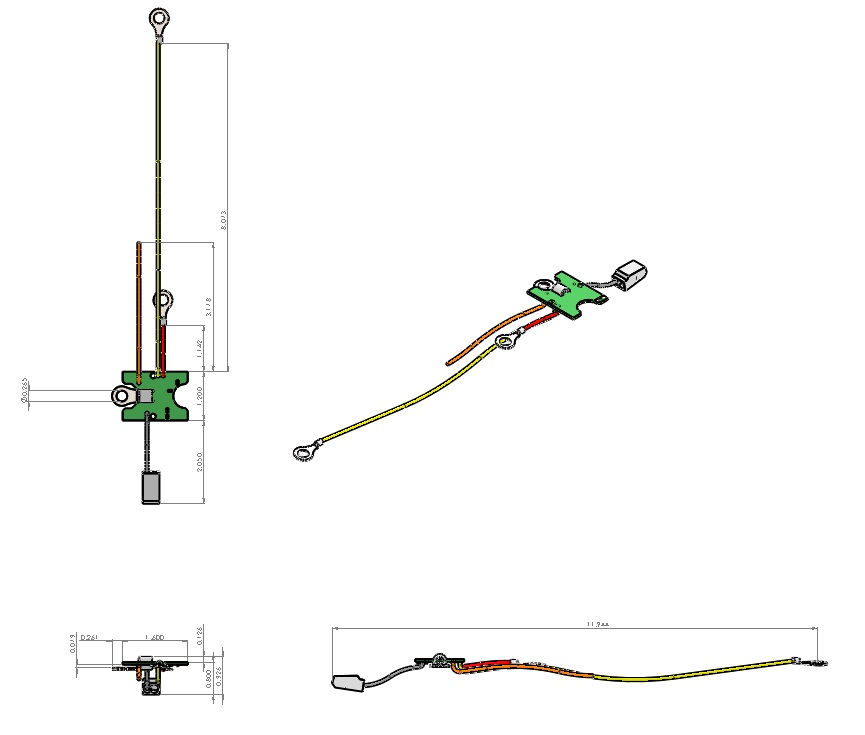

1LC0040M Cell board, 2x large cylindrical, 40 mm, mid-bank STEP
eDrawing
JPG

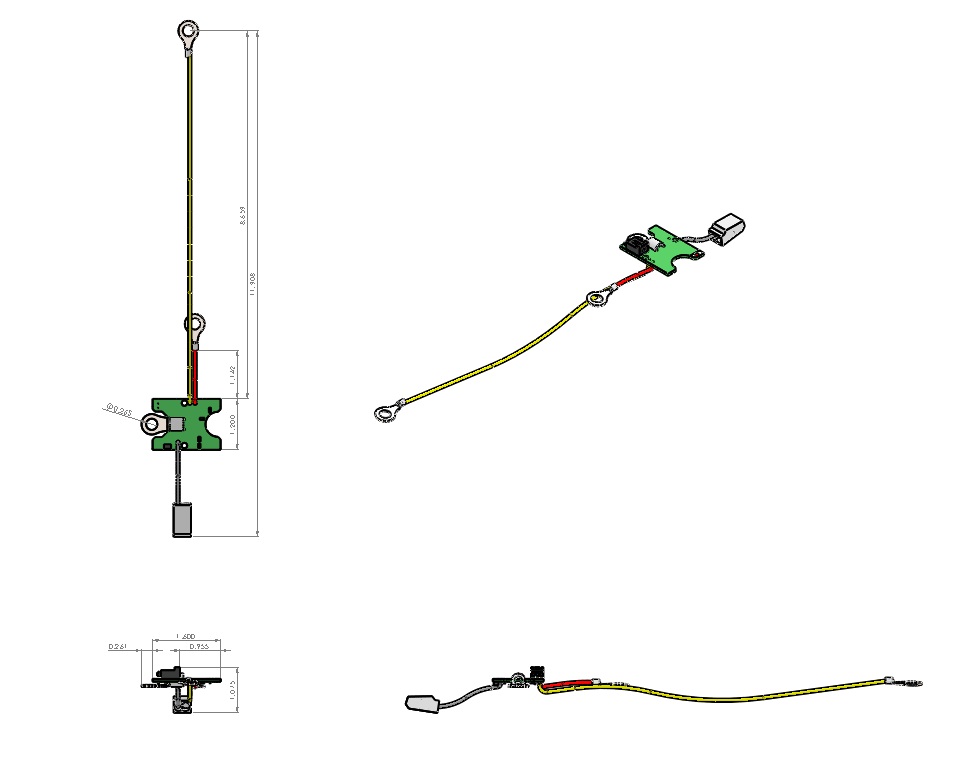

1LC0040P Cell board, 2x large cylindrical, 40 mm, positive end, r.a connector STEP
eDrawing
JPG

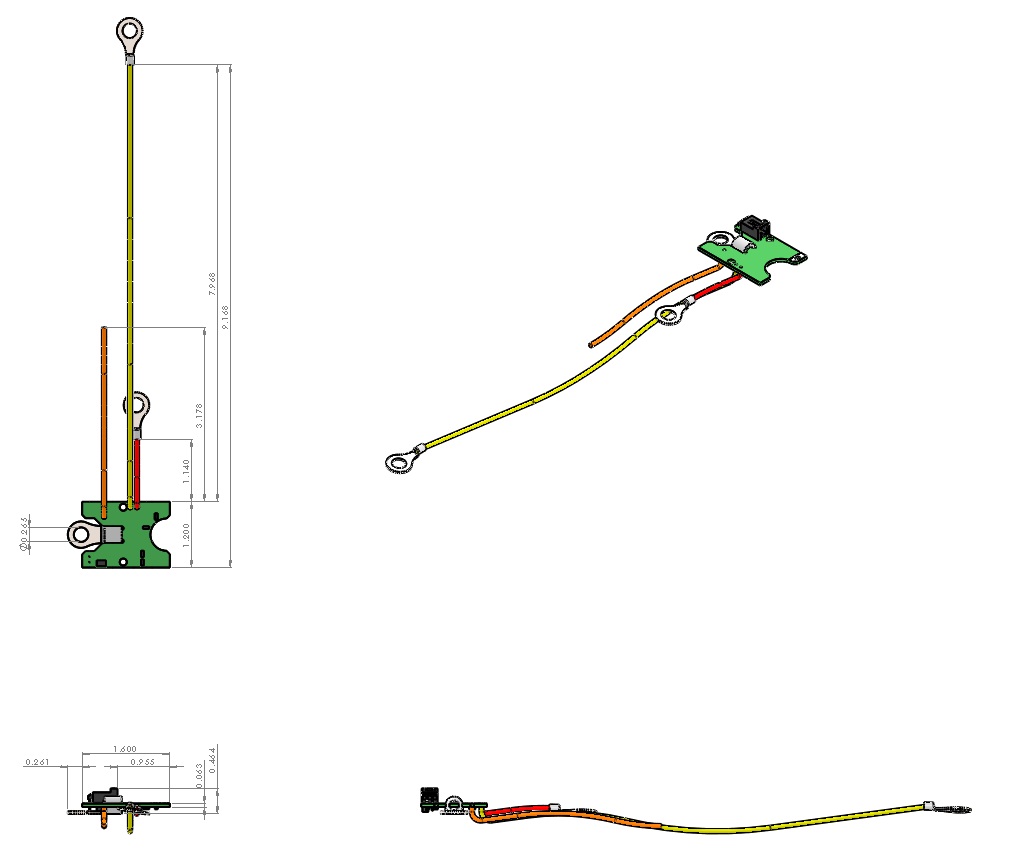

1LC0040N Cell board, 2x large cylindrical, 40 mm, negative end, r.a connector STEP
eDrawing
JPG
1LC0060M Cell board, 2x large cylindrical, 60 mm, mid-bank
1LC0060P Cell board, 2x large cylindrical, 60 mm, positive end, r.a connector
1LC0060N Cell board, 2x large cylindrical, 60 mm, negative end, r.a connector
