SOC display mechanical specs

Mechanical Specifications for the 6DS0xx4K round, open assembly, SOC display

The display module is a PCB assembly; it is not enclosed.
Item Value
Dimensions (with RA connector) 1.82" dia; tall x 0.663" deep (46.2 x 16.8 mm)
Mounting holes 2 each, 1.5" (38.1 mm) apart; 0.125" (4.9 mm) dia
Opening required in front panel 0.5" wide x 1.0" tall (12.7 x 25.4 mm)

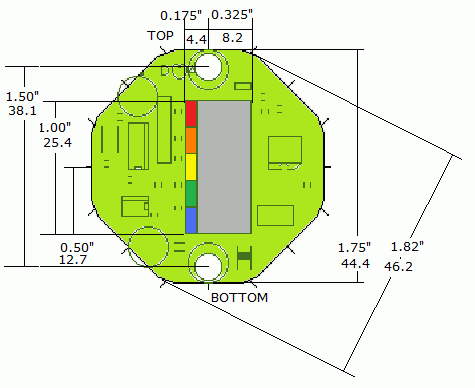

Board-level CAN display mechanical drawing Suggested overlay

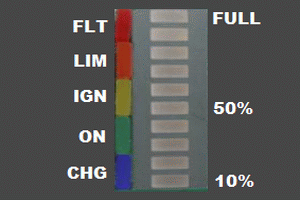

Board-level, round CAN display (click to enlarge), left. Suggested overlay, right.
