Lithiumate™ Lite meters Analog meters for pack voltage, current and SOC | |
|
While the Lithiumate Lite BMS can drive a variety of analog and digital meters,
it is optimized to work specifically with Westach meter.
Elithion does not sell thee meters: they are available directly from Westach.
When specifying a meter, note the following:
- The meter movement must be 5 Vdc full scale, regardless of the meter's dial or function
- Centered meters are still 5 Vdc full scale: -2.5 V to 0 to 2.5 V
- You may order any dial that is appropriate for your application
- For example: 0~400 V; 200~300 V; 0~300 A; -50~200 A; 0~100% SOC
- The Lite can then be configured to match the dial
|

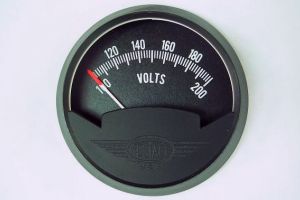

Westach meter
|
Case
| Diameter | Code
|
|---|
| 2" | 20
|
|---|
| 2.25" | 22
|
|---|
| 3" | 30
|
|---|
| 3.13" | 31
|
|---|
| 4" | 40
|
|---|
| Meter
| Dial
| Range | Code
|
|---|
| 0~20 V | 20
|
|---|
| 0~50 V | 50
|
|---|
| 0~100 V | 100
|
|---|
| 0~200 V | 200
|
|---|
| 0~500 V | 500
|
|---|
| 50~100 V | 50-100
|
|---|
| 100~200 V | 100-200
|
|---|
| 200~400 V | 200-400
|
|---|
| 500~1000 V | 500-1000
|
|---|
| Movement
| Type | Code
|
|---|
| 5 V full scale | M5
|
|---|
|
For example: 20VM400M5 = 2" diameter, 0~400 V dial
Case
| Diameter | Code
|
|---|
| 2" | 20
|
|---|
| 2.25" | 22
|
|---|
| 3" | 30
|
|---|
| 3.13" | 31
|
|---|
| 4" | 40
|
|---|
| Meter
| Dial
| Range | Code
|
|---|
| 0~50 A | 0-50
|
|---|
| 0~100 A | 0-100
|
|---|
| 0~200 A | 0-200
|
|---|
| 0~500 A | 0-500
|
|---|
| 0~1000 A | 0-1000
|
|---|
| -50~0~50 A | -50-50
|
|---|
| -100~0~100 A | -100-100
|
|---|
| -200~0~200 A | -200-200
|
|---|
| -500~0~500 A | -500-500
|
|---|
| -1000~0~1000 A | -1000-1000
|
|---|
| Movement
| Type | Code
|
|---|
| 5 V full scale | M5
|
|---|
| +/- 2.5 V full scale | C5
|
|---|
|
For example: 30AM200M5 = 3" diameter, 0~200 A dial
Case
| Diameter | Code
|
|---|
| 2" | 20
|
|---|
| 2.25" | 22
|
|---|
| 3" | 30
|
|---|
| 3.13" | 31
|
|---|
| 4" | 40
|
|---|
| Meter
| Dial
| Movement
| Type | Code
|
|---|
| 5 V full scale | M5
|
|---|
|
For example: 40SC100M5 = 4" diameter, 0~100 % dial
Please select create a part number for your meter, or select a meter from the parts list and then order from Westach.
