Cell board, prismatic, single cell

1PR0xxx, standard Cell Boards for prismatic cells

Each of these cell boards handles a single prismatic cell
(as opposed to a 1PM series, which handles multiple cells per board).
  • Matched to most sizes of prismatic cells
  • Mounted on the top of the cells, through ring terminals
    • Reliable mechanical mounting and direct electrical connection
  • One Cell Board per cell (or set of multiple cells in parallel)
    • Highest flexibility, as they may be used with any cell arrangement
  • Flat shape: doesn't extend past current carrying bolts
  • A single communication wire is used between adjacent cells in a bank
  • These cell boards require a BMS master to form a complete BMS
prismatic cell prismatic cell with cell board Primatic cell board

Applications

These cell boards can be used with most prismatic cells.

Single boards offer flexibility, as they can be used in a variety of cell arrangements.

These cell boards can be used with a variety of prismatic cells. They are available in various lengths, to accommodate various terminal spacings.

Installation is straightforward:

  1. Mount cell board's ring terminal on the cell's negative terminal
  2. Mount other ring terminal on the cell's positive terminal
  3. Connect adjacent cell boards with a communications wire

For more information, see the installation instructions.

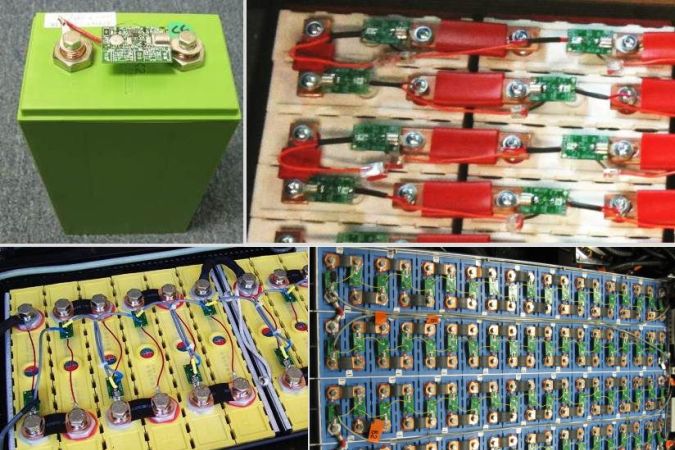

Prismatic boards in 4 applications Click picture to enlarge
Lithiumate prismatic cell boards in applications

Compatibility

These standard Cell Boards are compatible with a wide range of prismatic cells available on the market today.

These tables are based on information that we were able to obtain, and is not guaranteed by us. Some of that information may be incorrect, and some cell manufacturers change mechanical specifications without notice. Therefore, you are responsible for checking that a given cell board fits your cells!

Aleees

Model Capacity Dimensions Spacing Bolt size Cell board
SE40AHA Ah 46 x 116 x 182 64 ? 1PR3064
SE70AHA 70 Ah 61 x 115 x 212 ?
SE100AHA 100 Ah 67 x 142 x 217 81 ? 1PR4106
SE120AHA 120 Ah ? ? ?
SE180AHA 180 Ah 71 x 182 x 280 106 ? 1PR4106
SE200AHA 200 Ah 46 x 116 x 182 ?
SE300AHA 300 Ah 55 x 365 x 298 210 ? 1PR5210
SE400AHA 400 Ah 71 x 450 x 278 ?

CALB (Sky Energy)

Model Capacity Dimensions Spacing Bolt size Cell board
SE40AHA 40 Ah 116 x 46 x 182 64 M6 1PR3064
SE60AHA 60 Ah 142 x 50 x 220 61 M6 1PR3064
SE100AHA 100 Ah 142 x 67 x 217 81 M8 1PR4106
SE120AHA 120 Ah 182 x 57 x 279 106 M8 1PR4106
SE130AHA 130 Ah 182 x 57 x 279 106 M8 1PR4106
SE160AHA 160 Ah 182 x 283 x 71 106 M8 1PR4106
SE180AHA 180 Ah 182 x 283 x 71 106 M8 1PR4106
SE400AHA 400 Ah 450 x 283 x 71 240 M14 1PR8240

GBS

Model Capacity Dimensions Spacing Bolt size Cell board
GBS-LFMP60AH 4 x 60 Ah 57 M4.5 1PR2060
GBS-LFMP100AH 4 x 100 Ah
GBS-LFMP200AH See the dual prismatic cell boards

Gold Peak

Model Capacity Dimensions Spacing Bolt size Cell board
GP18EVLF 18 Ah 95 x 181 x 18 53 1PR3064
GP30EVLF 30 Ah 95 x 176 x 30 53 1PR3064
GP45EVLF 45 Ah 95 x 225 x 18 53 1PR3064

Huanyu

Model Capacity Dimensions Spacing Bolt size Cell board
HYP-3.2V-100Ah 100 Ah 280 x 46 x 182 ? ?

K2

Model Capacity Dimensions Spacing Bolt size Cell board
LFP165EVS 51 Ah 121 x 133 x 81 64 M6 1PR3064
LFP165HES 51 Ah
LFP165HPS 41 Ah
LFP300EVS 90 Ah 121 x 213 x 81
LFP300HES 90 Ah
LFP300HPS 72 Ah

Real Force

Model Capacity Dimensions Spacing Bolt size Cell board
RFE-F80 80 Ah 167*46*264.5 80 M10 1PR5146
RFE-F100 100 Ah 165*51*262.9 80 M10 1PR5146
RFE-F120 120 Ah 167*66*264.5 80 M10 1PR5146
RFE-F200 200 Ah 167*98*260 80 M12 1PR6210

Shandong HiPower

Model Capacity Dimensions Spacing Bolt size Cell board
100 Ah 100 Ah 150 x 162 x 270 97 M8 1PR4106
200 Ah 200 Ah 57 x 220 x 335 146 M10 1PR5146

Sinopoly

Model Capacity Dimensions Spacing Bolt size Cell board
SP-LFP40AHA 40 Ah 116 x 187 x 46 64 M6 1PR3064
SP-LFP60AHA 60 Ah 116 x 183 x 61 61 M6 1PR3064
SP-LFP90AHA 90 Ah 142 x 215 x 62 80 M8 1PR4106
SP-LFP100AHA 100 Ah 142 x 215 x 62 80 M8 1PR4106
SP-LFP180AHA 180 Ah 180 x 275 x 69 106 M8 1PR4106
SP-LFP200AHA 200 Ah 180 x 275 x 69 106 M8 1PR4106
SP-LFP260AHA 260 Ah 360 x 301 x 54 210 M12
M14
1PR6210
1PR5210
SP-LFP300AHA 300 Ah 360 x 301 x 54 210 M12
M14
1PR6210
1PR5210
SP-LFP400AHA 400 Ah 446 x 277 x 72 240 M14? 1PR8240?
SP-LFP700AHA 700 Ah 628 x 303 x 67 268 M14?
SP-LFP1000AHA 1000 Ah 850 x 294 x 71 350 M14?

Tenergy

Model Capacity Dimensions Spacing Bolt size Cell board
30210 100 Ah 182 x 46 x 280 ? ?
30211 200 Ah 183 x 82 x 280 ? ?

ThunderSky / Winston

Model Capacity Dimensions Spacing Bolt size Cell board
TS-LFP40AHA
WBQ-LYP40AHA
40 Ah 116 x 183 x 46 61 M6 1PR3064
TS-LFP60AHA
WBQ-LYP60AHA
60 Ah 115 x 203 x 61 61 M6 1PR3064
TS-LFP90AHA 90 Ah 143 x 218 x 61 82 M8 1PR4106
TS-LFP100AHA 100 Ah 145 x 220 x 68 83 M8 1PR4106
TS-LFP100AHA
WBQ-LYP100AHA
179 x 218 x 62 106 M8 1PR4106
TS-LFP150AHA 150 Ah 182 x 279 x 71 106 M8 1PR4106
TS-LFP160AHA 160 Ah 182 x 276 x 71 106 M8 1PR4106
TS-LFP160AHA
WBQ-LYP160AHA
209 x 280 x 65 102 M8 1PR4106
TS-LFP200AHA 200 Ah 362 x 256 x 55.5 210 M14 1PR5210
WB-LYP200AHA(B) 362 x 256 x 55.5 210 M12 1PR6210
TS-LFP200AHA 183 x 280 x 100 106 M8 1PR4106
TS-LFP260AHA 260 Ah 362 x 283 x 55.5 210 M12
M14
1PR6210
1PR5210
TS-LFP300AHA 300 Ah 362 x 306 x 55.5 210 M12
M14
1PR6210
1PR5210
TS-LFP400AHA 400 Ah 461 x 285 x 65 240 M14 1PR8240
TS-LFP700AHA 700 Ah 627 x 306 x 67 240 M14 1PR8240

Specifications

Specifications are in the Lithiumate™ Manual.

Selection

Banking

Each bank requires a positive cell board on its most positive cell, a negative cell board on its most negative cell, and mid-bank cell boards in the remaining cells.
(The automatic quote form will select the correct number of each type of board for you.)

Connectors

Right angle connectors are standard on end boards. Versions with straight connectors or no connectors are available with quick turnaround.

  • With right angle connectors - requires a slight extra mounting space beyond the cell bolts
  • With straight connectors - requires significant extra mounting space beyond the cell bolts
  • Without connectors (cables to the BMS controller are soldered directly to the cell board) - requires no extra space beyond the cell bolts

Part numbering

Part number: 1PR4106M:

  • 1 = Cell Board
  • PR = Prismatic
  • 4 = M8 bolt (value is 1/2 of diameter in mm)
  • 106 = maximum center-to-center spacing of cell terminals, in mm
  • M = mid bank (available:M = mid-bank; P = positive end; N = negative end)

Models

Parts in bold are stocked.
Click on a picture to enlarge.
NOTE: Negative end cell boards rev D and above (manufactured since Jan 2014) are not compatible with rev C & D Masters (manufactured before Nov 2009)

Max
Terminal
spacing
Bolt size Positive end Mid-bank Negative end

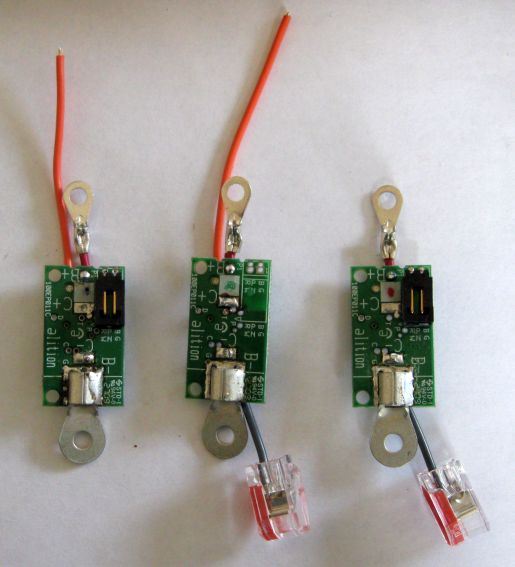

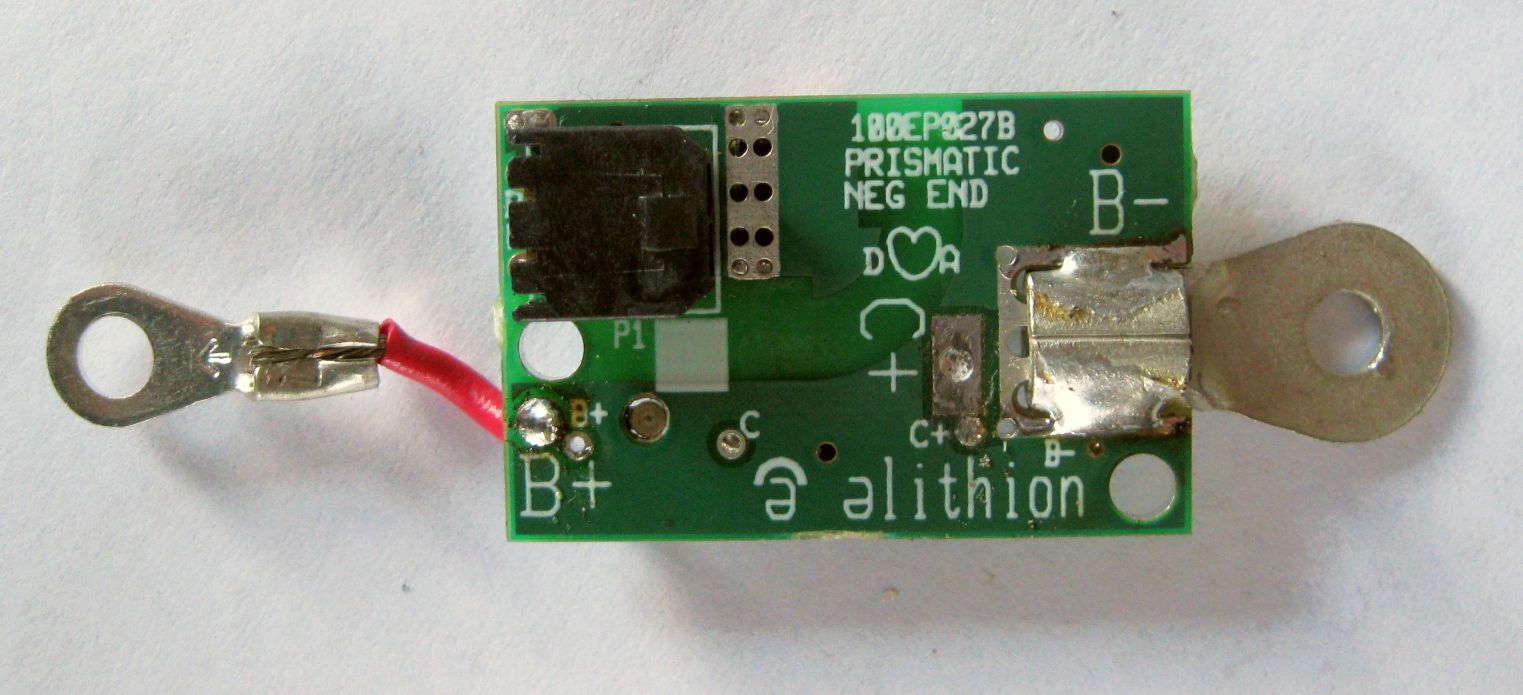

58 mm M4
Cell boardClick picture to enlarge
1PR2060P
Cell boardClick picture to enlarge
1PR2060M
Cell boardClick picture to enlarge
1PR2060N

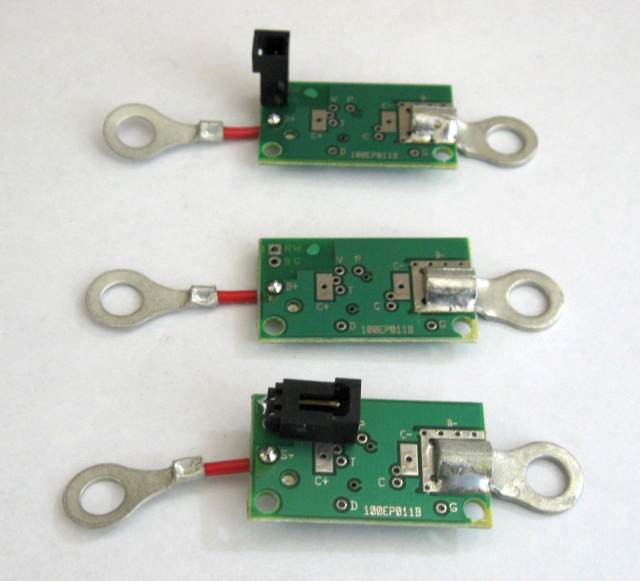

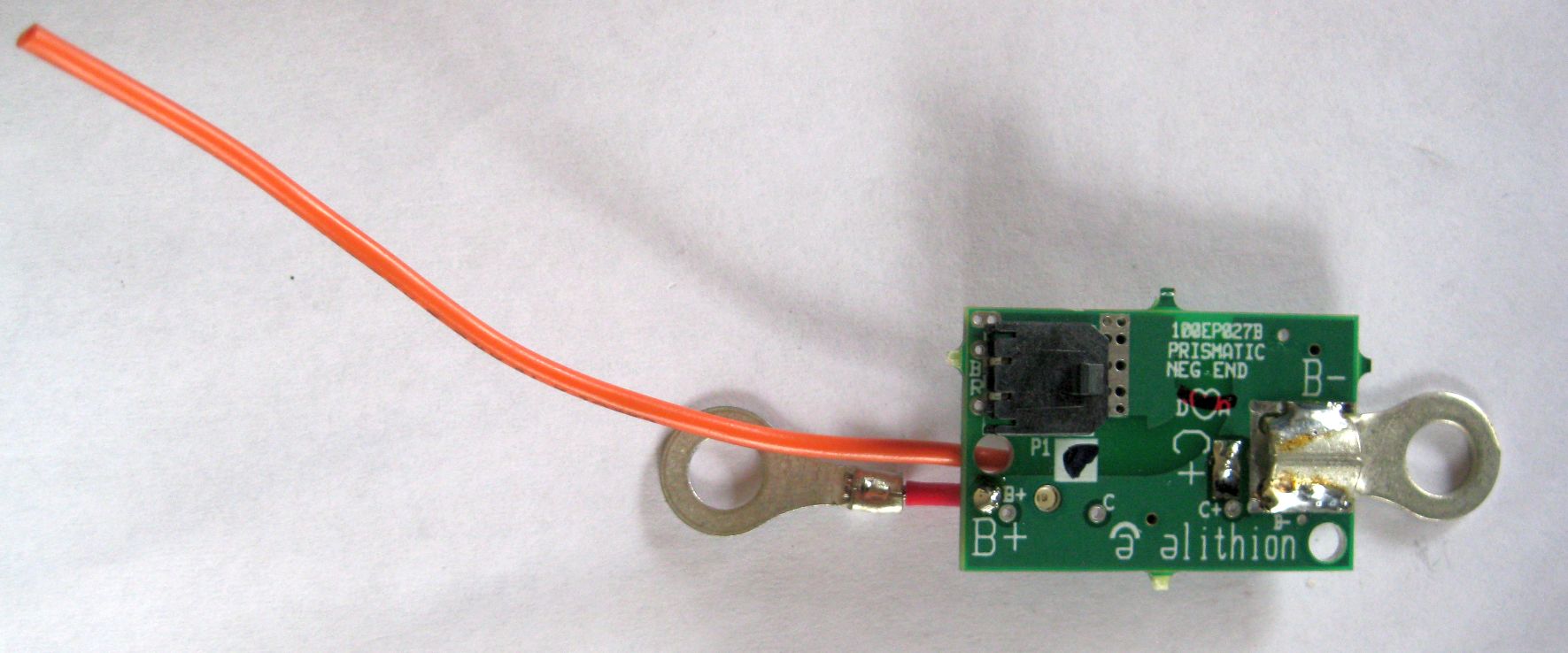

64 mm M6
Cell boardClick picture to enlarge
1PR3064P
Cell boardClick picture to enlarge
1PR3064M
Cell boardClick picture to enlarge
1PR3064N

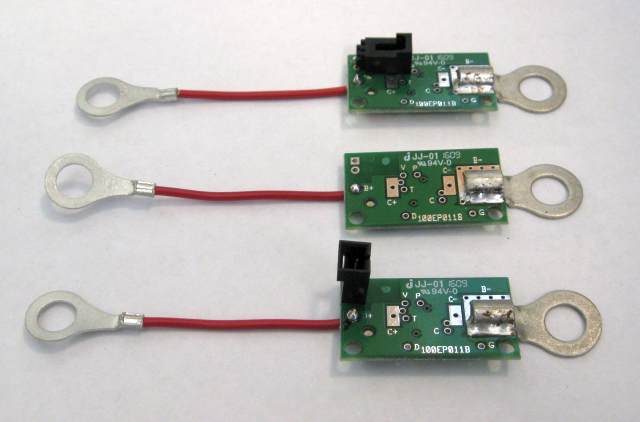

106 mm M8
Cell boardClick picture to enlarge
1PR4106P
Cell boardClick picture to enlarge
1PR4106M
Cell boardClick picture to enlarge
1PR4106N

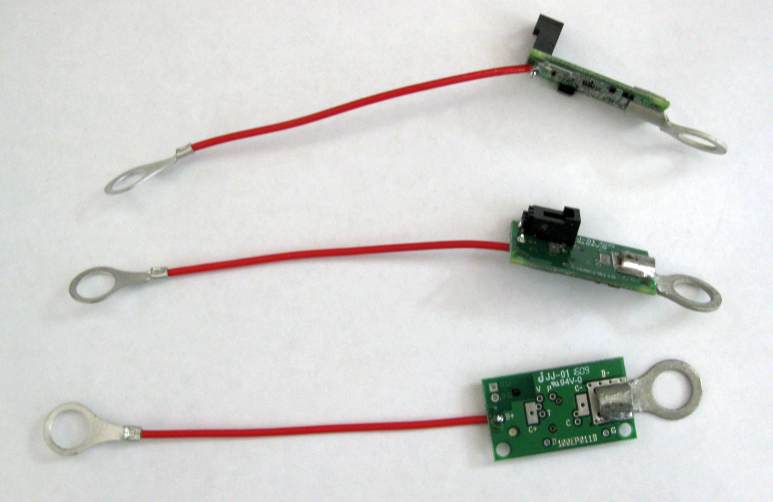

146 mm M10
Cell boardClick picture to enlarge
1PR5146P
Cell boardClick picture to enlarge
1PR5146M
Cell boardClick picture to enlarge
1PR5146N

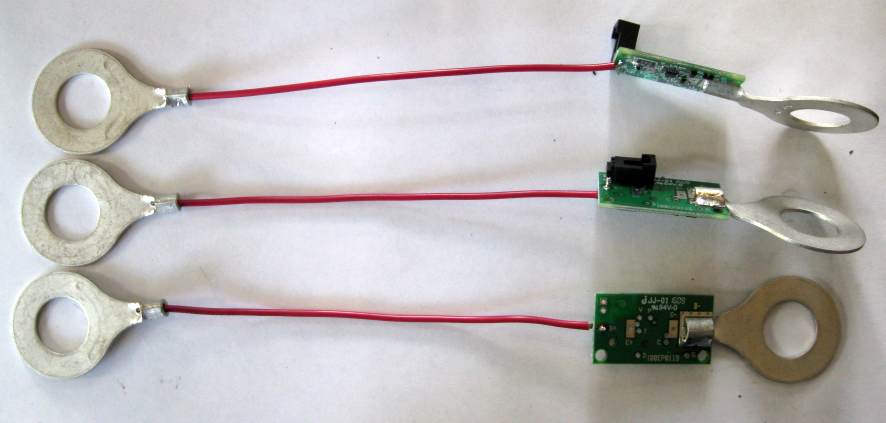

210 mm M12
Cell boardClick picture to enlarge
1PR5210P
Cell boardClick picture to enlarge
1PR5210M
Cell boardClick picture to enlarge
1PR5210N
210 mm M14/M16
Cell boardClick picture to enlarge
1PR6210P
Cell boardClick picture to enlarge
1PR6210M
Cell boardClick picture to enlarge
1PR6210N
240 mm M14/M16 1PR8240P 1PR8240M 1PR8240N

Ordering

To order, please see the Lithiumate BMS ordering form.
